Author Topic: Houser a arm (Read 2337 times)

trxjohn250r · « **on:** March 21, 2014, 09:38:41 PM »

Hey guys I got some questions as to why I have positive camber on my set up. I bought them and the guy who had them before me idk what he did But the lock nut is already on the inside of the a arms. Not sure if the Heims are not housers and if the older arms require the angle ball joint . The heim is a 16mm not 14 also

Any help would be great! Did this off my mobile phone so sorry if its hard to read. Could not post pics but will on desktop later

trx250scar · « **Reply #1 on:** March 21, 2014, 10:19:56 PM »

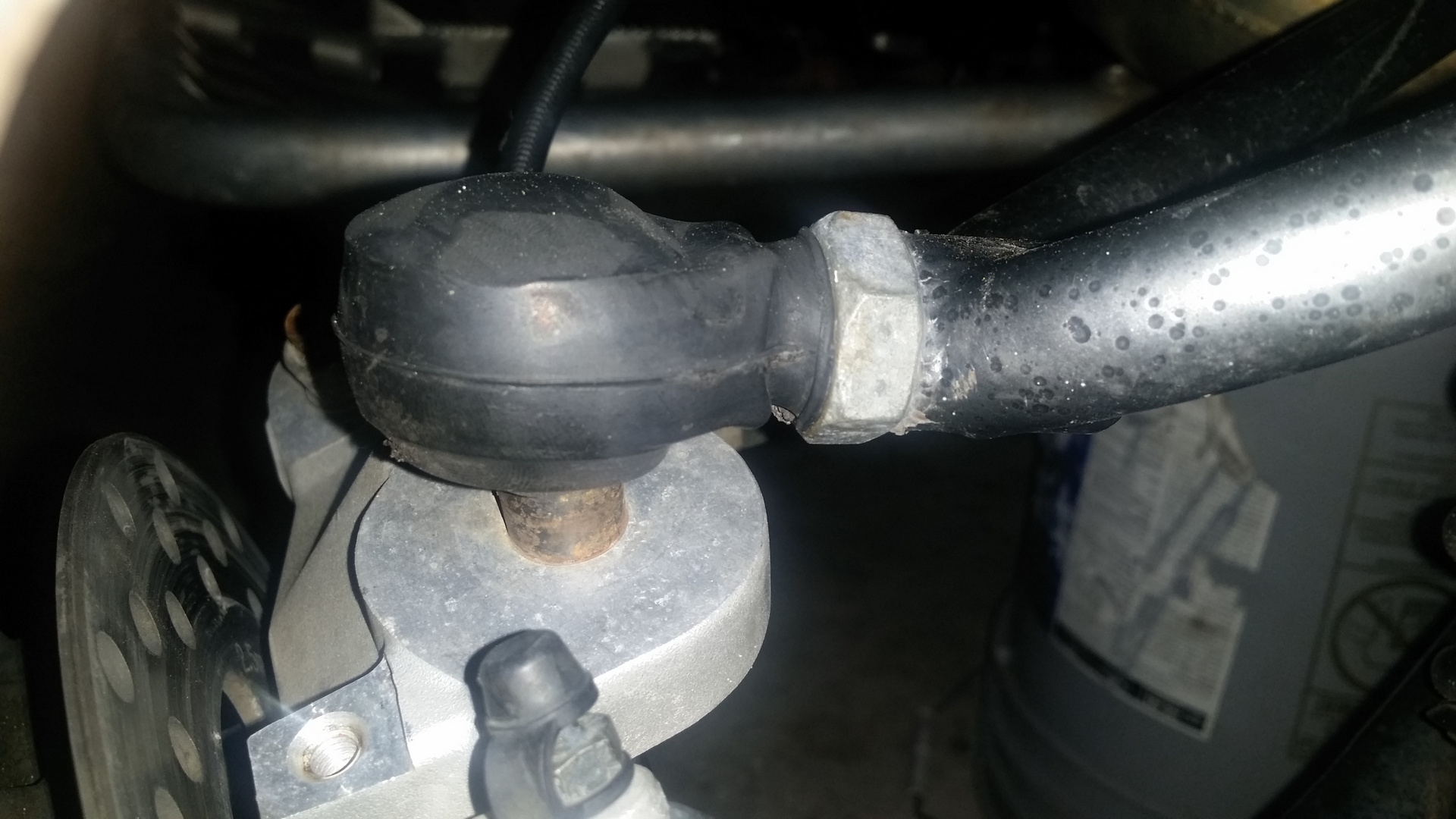

Don't mind the angle at the spindle I have the bottom ball joints out waiting on the new ones in the mail.if you have the style that has a clip on the underside of the arm they are "old style" on Houser web site. Also same as 400 and 450 even tho they are not listed for 250.

trxjohn250r · « **Reply #2 on:** March 21, 2014, 11:03:11 PM »

Thanks for a visual scar. Yah my lowers are like that the old style . But the camber adjustments are on the top heim and the jam nut is on the other side of the a arm as yours is on the outside . That's what's confusing me cause it has too much positive camber even with the heim al the way in

trx250scar · « **Reply #3 on:** March 21, 2014, 11:34:44 PM »

Post pics when u can and Also Info on spindles. Those are 04/05 trx450 spindles on 250r +3 lt arms.

trxjohn250r · « **Reply #4 on:** March 22, 2014, 10:27:24 AM »

I'm running the a arms on my 400ex actually . But I always used 400 spindles on no my bikes.

Will get more pictures for ya man. Thanks

trx250scar · « **Reply #5 on:** March 22, 2014, 11:07:41 PM »

That's the problem the ex spindles use a different upper a arm length.

trxjohn250r · « **Reply #6 on:** March 22, 2014, 11:11:52 PM »

Really? Did not know that ! Thanks for the help. So either R hub will work? But only o4/o5 450 spindles
