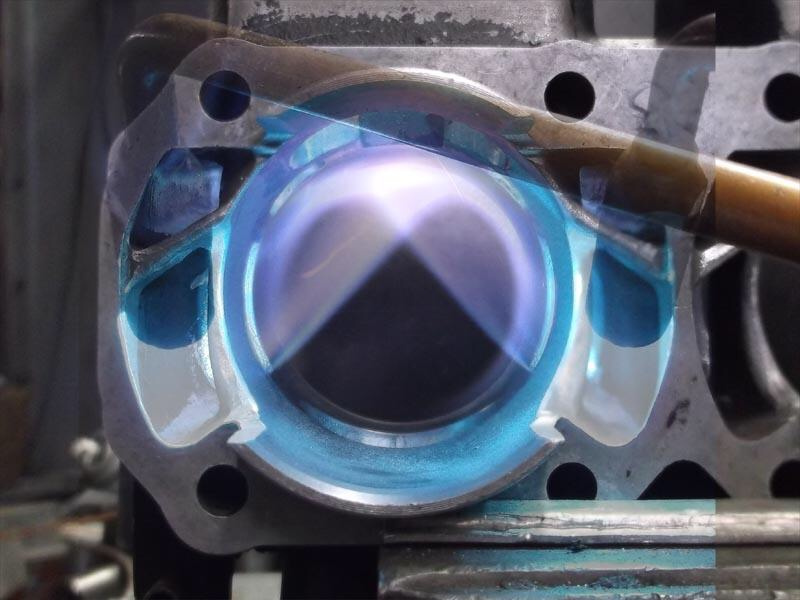

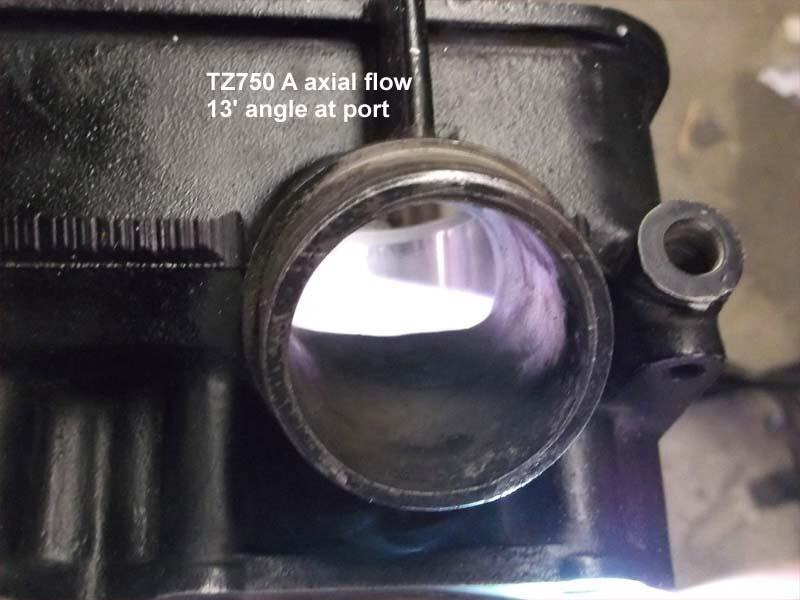

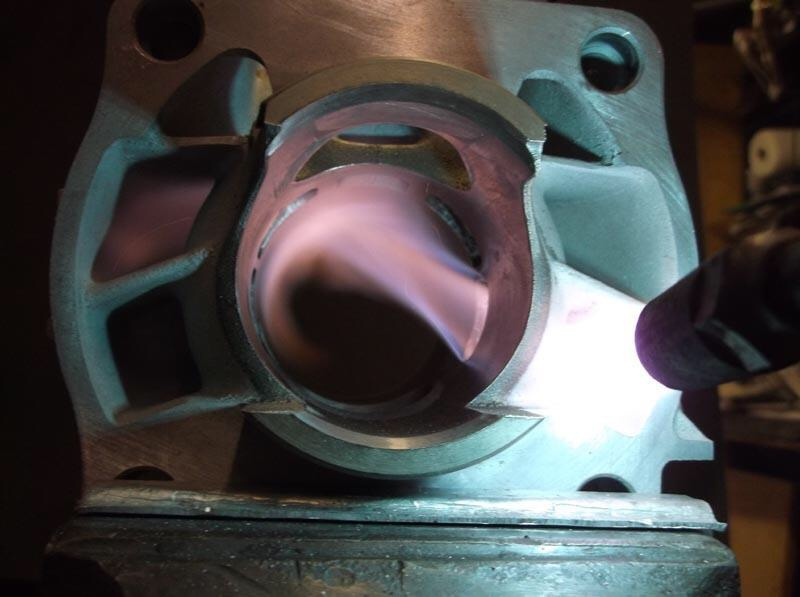

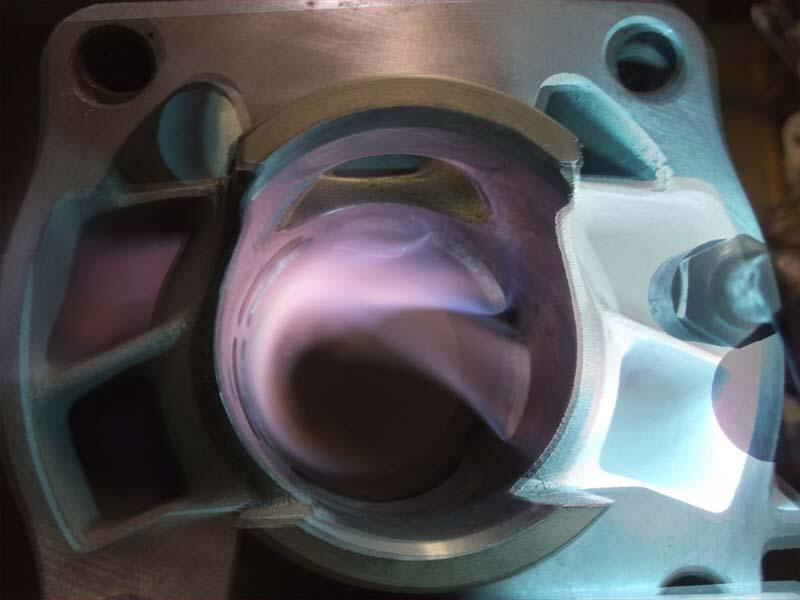

Scott Clough of SCRacing has made public a procedure he uses to visually check port flow in his cylinders he makes port changes to.
he uses a rosebud tip on his oxy/acetylene torch to look at his changes, he eventually hopes to get around and build a setup with 4 rosebud tips to show the colliding of the air streams.
This is the most impressive flow simulation I have seen to date by far.
