Author Topic: race wire harness (Read 3409 times)

chaos444 · « **on:** January 28, 2015, 08:09:52 PM »

anyone got a schematic of a race harness? no lights, just ignition?

c_williamson007 · « **Reply #1 on:** January 29, 2015, 01:00:09 AM »

I know there is a service manual download on the site and it has the schematic for the stock electrical system. You should be able to build a harness from that.

pinned250r · « **Reply #2 on:** January 29, 2015, 08:23:39 AM »

It's just 3 wires, I can tell you that. But I don't have my diagram handy. Should be in the tech info section though!

hontrx265r · « **Reply #3 on:** January 29, 2015, 08:57:25 AM »

All six cdi wires. Black/red, blue/yellow, green/white at stator
Black white to kill switch with ground (green), black/yellow, with ground(green) to coil, and dont forget to ground the green from the cdi.

mx250r91 · « **Reply #4 on:** January 30, 2015, 10:07:05 AM »

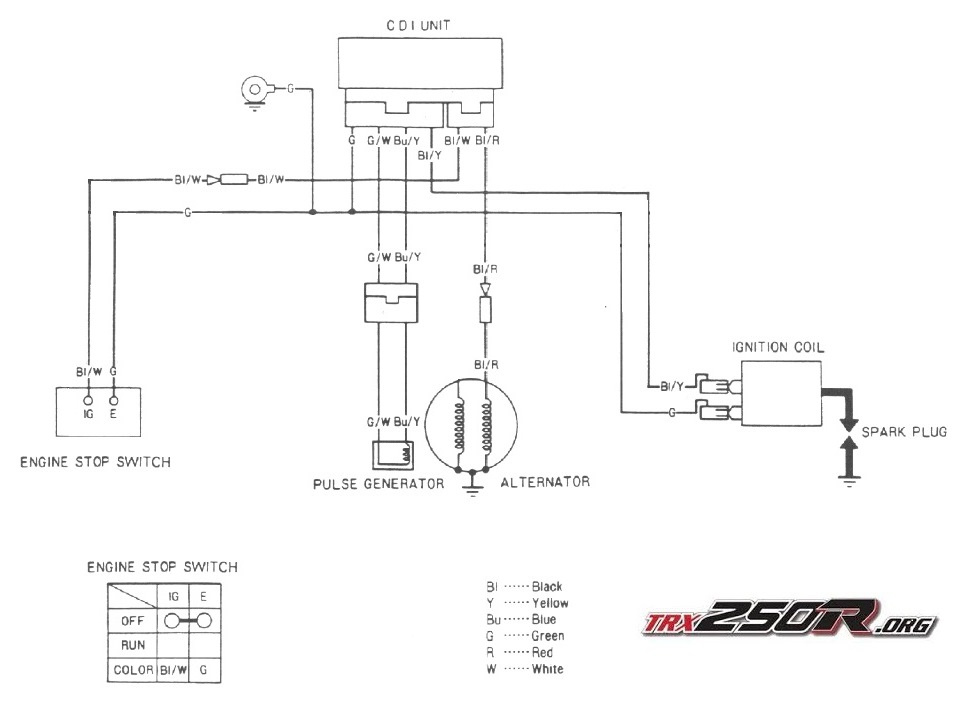

Here you go:

chaos444 · « **Reply #5 on:** January 30, 2015, 01:22:14 PM »

awesome, thanks guys!
